Edge Impulse and Seeed have partnered together to support Seeed's Grove - Vision AI Module with Edge Impulse, enabling users to now acquire, develop, and deploy vision-based ML applications with Edge Impulse Studio and Edge Impulse SDK.
Seeed’s Grove - Vision AI Module is a thumb-sized board based on Himax HX6537-A processor, which is equipped with a 2-megapixel OV2640 camera, microphone, 3-axis accelerometer, and 3-axis gyroscope. It offers storage with 32MB SPI flash, comes pre-installed with ML algorithms for face recognition and people detection, and supports customized models as well. It is compatible with the XIAO ecosystem and Arduino, all of which makes it perfect for getting started with AI-powered camera projects.
Read the How do I get started? sectionHow do I get started?
You may purchase a Grove Vision - AI Module from Seeed. Then, follow our Grove - Vision AI Module documentation page on Edge Impulse for instructions on how to quickly develop and deploy your first vision-based ML application!
Read the Grove - Vision AI Module with Edge Impulse in action! sectionGrove - Vision AI Module with Edge Impulse in action!

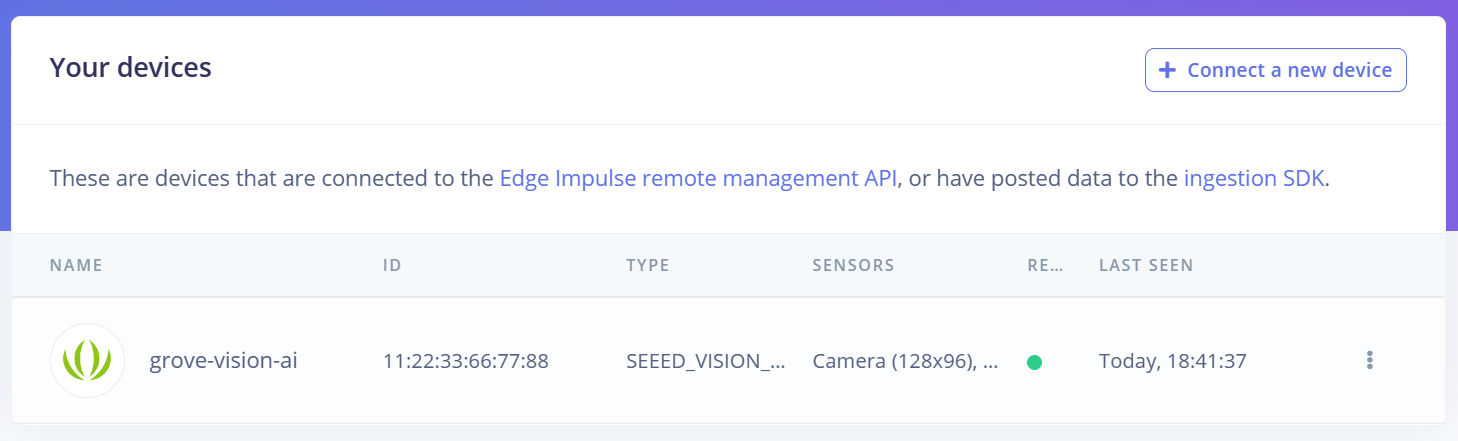

After connecting the Grove - Vision AI Module with Edge Impulse Studio, the board will be listed as follows:

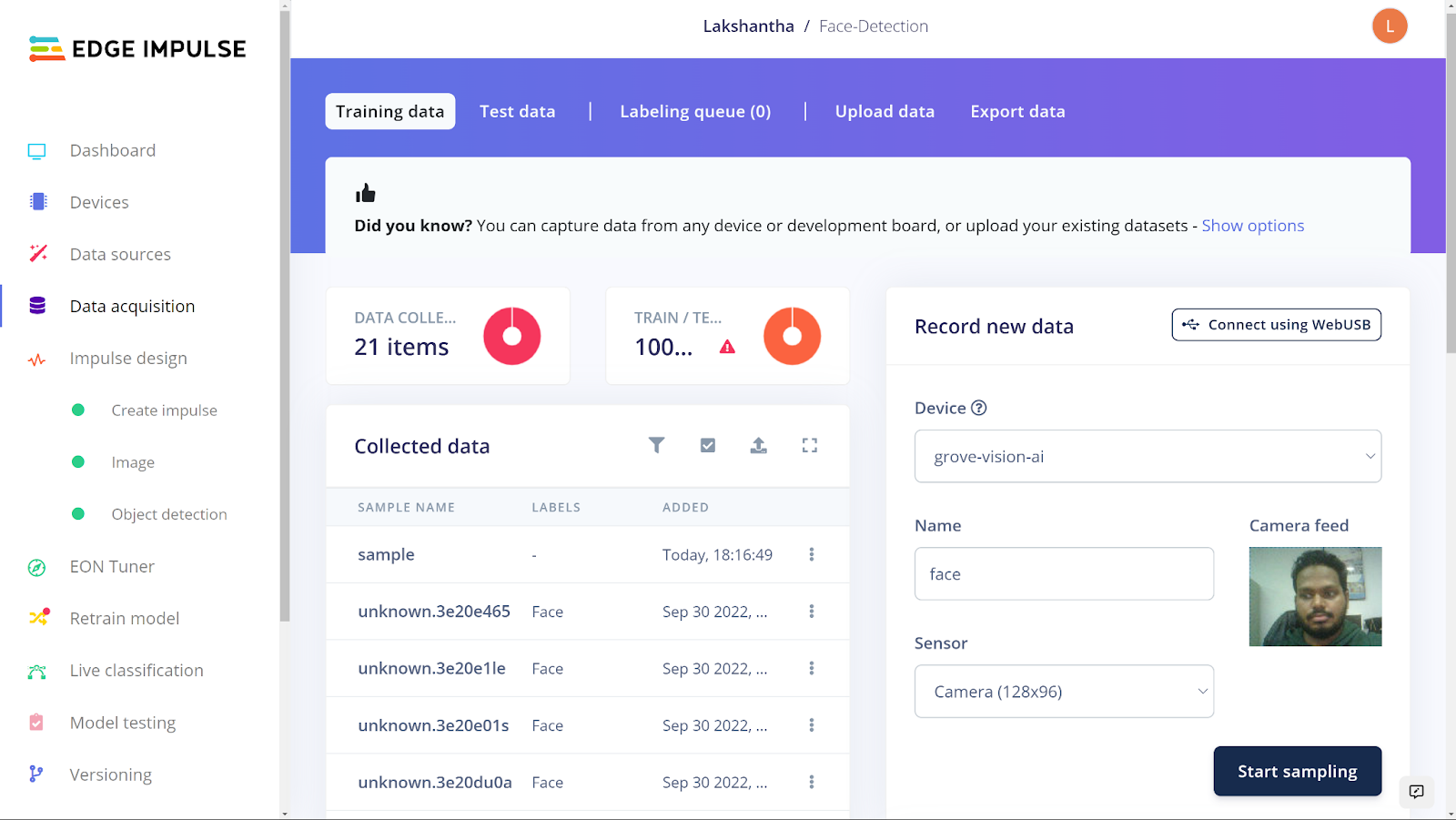

Frames from the onboard camera can be directly captured from the studio:

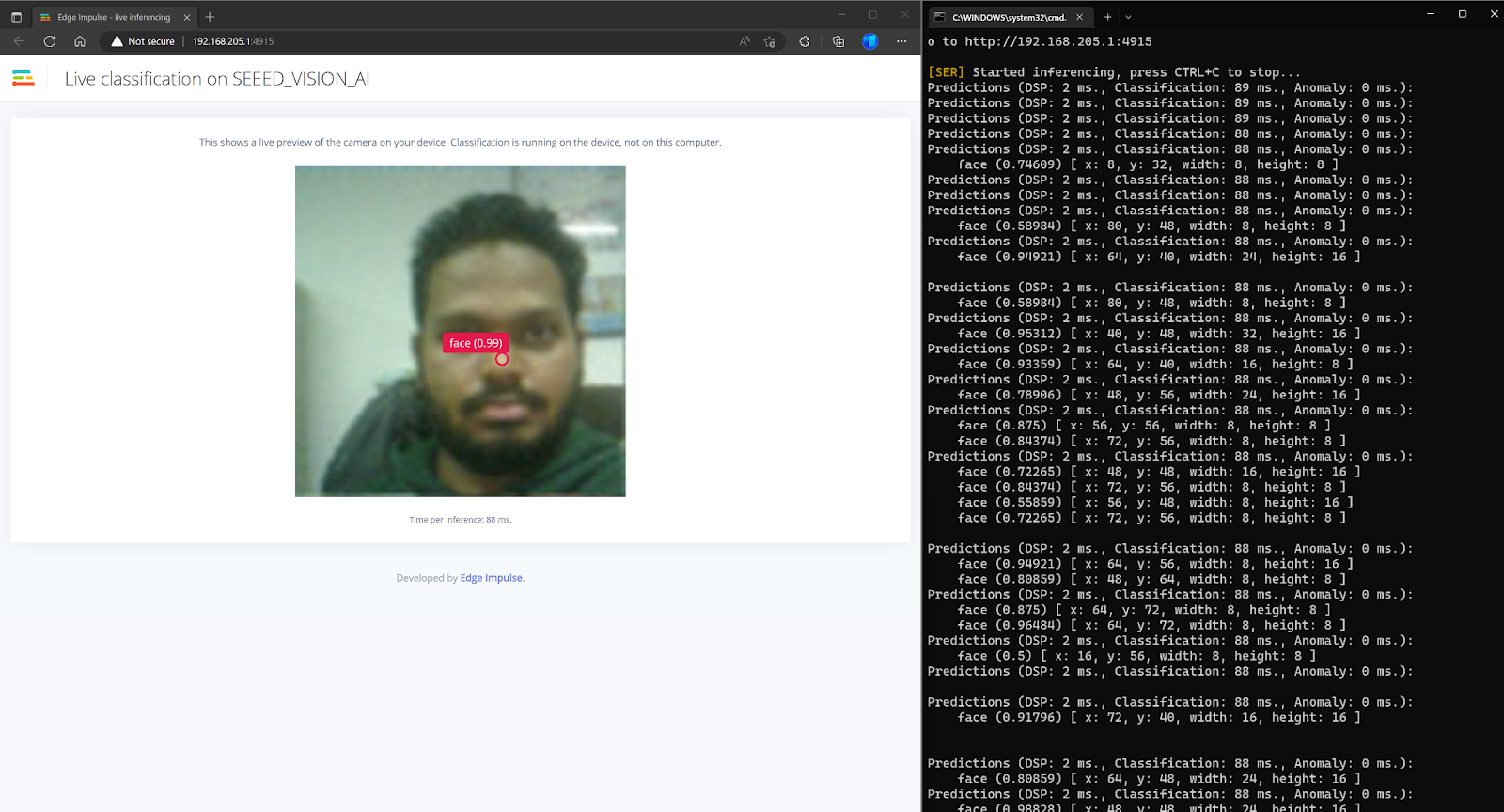

Finally, once a model is trained, it can be easily deployed to the Grove - Vision AI Module to start inferencing!
If you have any questions please create a post on Edge Impulse forum.
